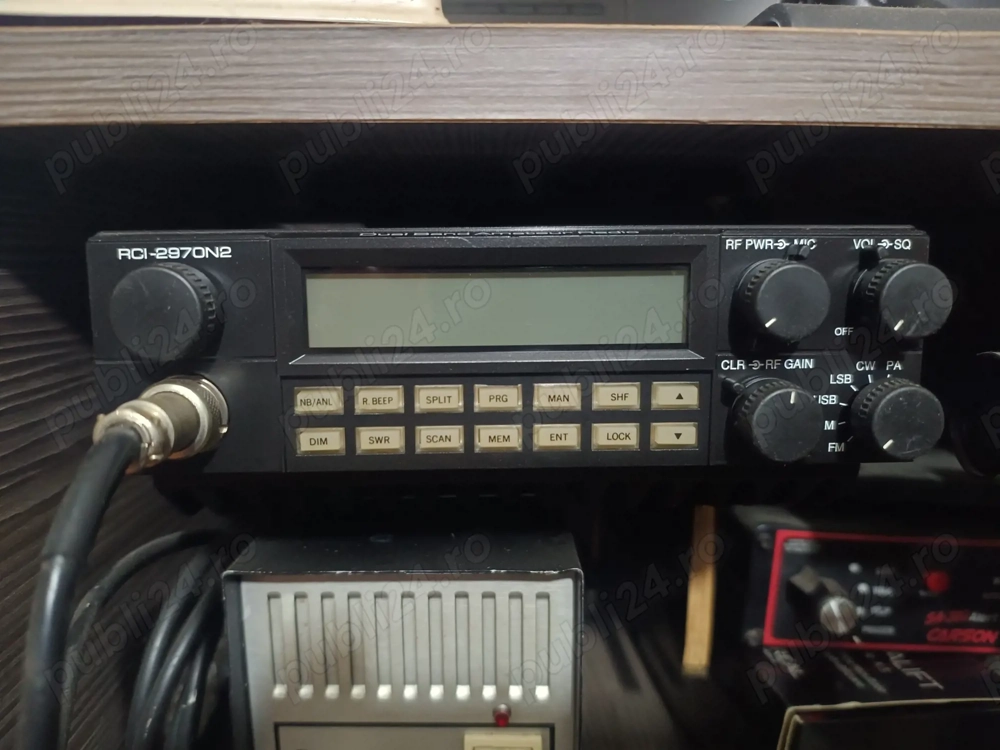

Statie radio Ranger RCI 2970 N2

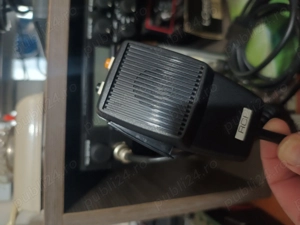

Vand statie RCI Ranger 2970 N2 radioamatori si CB ,stare foarte buna. Vine insotita de microfon,cablul de alimentare si suport metalic de montaj.

: 13.8 VDC
Current drain / power consumption: RX: ? mA
TX: Max 32 A
Antenna impedance / connector: 50 ohm / SO-239 (On pigtail)
Dimensions (W*H*D): 178*99*229 mm (7.**********.12")
Weight: 4.99 Kg (11 lb)
Other features: 10 (Early) or 16 (Later) memories. PA. NB/ANL. Repeater offset.
Dimmer. Scanning. CTCSS option.

RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity: AM: 0.5 uV (10 dB S/N)
FM: 0.25 uV (12 dB S/N)
SSB/CW: 0.15 uV (10 dB S/N)
Selectivity:
Image rejection: >65 dB
AF output power / speaker: 2.5 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm, 8 ohm

TRANSMITTER SECTION
RF output power: AM/FM/CW: 100 W (RMS)
SSB: 200 W (PEP)
Modulation system:
Max FM deviation (Factory set): ±? KHz
Spurious emissions: Better than -50 dB
Microphone impedance / connector: 400 ohm / 6-pin, dynamic (Metal locking ring connector)

ID anunț: 1770384797
