This is a high-speed and low-cost hardware debugger programmer. It can be used for in-circuit debugging logic incorporated into each chip with Flash memory.

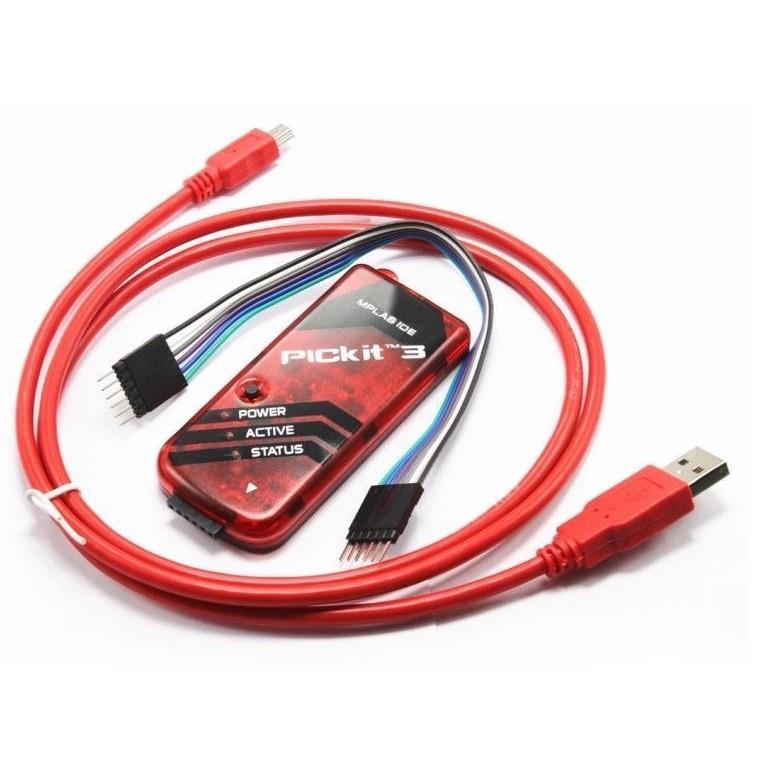

The MPLAB PICkit 3 allows debugging and programming of PIC and dsPIC Flash microcontrollers at a reasonable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a high speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE). The connector uses two device I O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming.
Features: -Low cost -Minimum of additional hardware needed for debug -Expensive sockets or adapters are not required. The PICkit 3 can now also reprogram any PIC microcontroller.
- USB (High speed 12 Mbits s interface to host PC) - Real-time execution p5o5 al3x - MPLAB IDE compatible - Built-in over-voltage short circuit monitor - Firmware upgradeable from PC web download - Totally enclosed - Supports low voltage to 2.0 volts (2.0v to 6.0v range) - Diagnostic LEDs (power, busy, error) - Read write program and data memory of microcontroller - Erase of program memory space with verification - Freeze-peripherals at breakpoint - Program up to 512K byte flash with the Programmer-to-Go Download program IDE:
- - - - - - - - - - - - - - - - - - - - - - - - -
