Electrovalva de 1 2" - Normal inchis (adica daca se opreste curentul se inchide)
Cu trei tipuri de alimentare (bobine diferite, acelasi corp) de 12V - DC, 24V - DC si 230V AC.
Cand comantati specificati tensiunea dorita
Consum 6W (pentru oricare tenisune, AC si DC)
Optional pentru electrovalva de 12V contracost:
- Alimentator (AC-220) out DC 12V (in limita a 1 buc la o electrovalva) + 20 lei
Teava de la electrovalva este de 1 2"
Presiune de lucru 8Mpa adica in bari 0.2 - 8 bari
- Instalatia de apa in casa (apartament) are max 5 bari - cu aproximatie, deci suporta presiunea de pe coloana de apa
- temperatura max 80C (Absolut maxim 100C)
Description:
Material: metal + plastic
Screw diameter: approx. 20mm
Size: approx. 84 x 57mm (L x H)
Coil size: approx. 34 x 23mm (W x H)
Color: as picture shows
Voltage: DC 12V, 24V and 230AV (220V AC)
Power: 8W
Current: 0.6A
Inlet and outlet: hose barbs for 1 2" (outer diameter) hose
Pressure 8Mpa
Max fluid temperature: 80C (Absolut maxim 100C short time)
Operation mode: normally closed
Valve type: solenoid, in5ta al3x t3rm1
Usage: water and low viscosity fluids
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Termostat digital controler temperatura, -50C la 110C - model MH1210
Curent continuu DC !
- MH1210 - 12V (versiunea de 12V-DC)
- MH1210 - 24V (versiunea de 24V-DC )
- MH1210 - 14-90V (versiunea cu plaja de la 14V pana la 90V-DC)
Curent alternativ AC !
- MH1210 - 12-60V (versiunea cu plaja de la 12V pana la 60V-AC)
- MH1210 - 230V (versiunea de 230V-AC)
va rog sa specificati modelul cerut
Atentie: Nu se ofera garantie pentru versiunea de 230V daca se monteaza in sisteme trifazice. Am avut surpriza in lipsa nulului ca tensiunea sa depaseasca 245V rezultand in defectarea aparatului. Deci mare atentie !!!
Acest termostat are doua functii de control temperatura: incalzire sau racire, acest lucru se seteaza din meniu. Aceste functii nu merg niciodata in acelasi timp, ori controleaza incalzire (centrala, aeroterma . . . etc) ori racire (frigider, combina . . . etc)
Daca doriti un termostat care controleaza in acelasi timp ambele moduri racire si incalzire (acvariu, clocitoare) vedeti in anunturile mele termostatul STC1000 (stc 1000)
Nota:
- Senzorul de temperatura are teaca de metal (ca in poza) este inclus si este izolat (poate sta in apa)
- dimensiune senzor temperatura: grosime 4mm si lungime 20mm
- temperatura reglabila -50C la 110C
- Are o singura iesire de comanda 1 x 10A (max) 250 V
- Termostatul arata ca in poza si este nou
- Atentie pentru a comuta electric sarcini mai mari de 10A peste capacitatea Termostatului (Aer conditionat, radiatoare, boiler, pompe de putere ... ) folositi circuite de comanda de puteri mai mari corect dimensionate, comandate de catre termostat (folosirea iesirii de 10A 250 AC)
- vine cu manual de utilizare
Features:
A mini temperature controller.
With large and clear LED display for better readability.
Wide temperature measuring range.
Heating and cooling control.
Temperature calibration function.
Delay protection function.
All parameters can be set to default setting after short circuit.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems.
Specifications: MH1210
Working voltage: 90 250V 10% (220, 240)
Rated current: 10A
Power consumption: =3W
Measurement range Celsius degree
Measurement precision: 0.1 Celsius degree
Measurement error: 0.3 Celsius degree
Control precision: 0.1 Celsius degree
Working temperature:-20 70 Celsius degree
Temperature sensor: NTC 25 Celsius degree=10K B3435
Item dimensions: approx MM
Net weight:93g t3rm1 al3x 220
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Releu temporizare 0.1s - 999min
Automatizarea este disponibila in 2 versiuni:
- 35 lei - cu alimentare la 5V, 6-30V DC (Standard)
- 59 lei - cu alimentare la 5V, 8-90V DC
Se ofera la cerere manual in format electronic
Specificatii:
Tensiune de alimentare este pe USB 5V cat si extern intre 8V si 90V
(adica 9V, 10V, 12V, 18V, 24V, 36V, 42V, 48V, 54V, 56V, 60V, 62V, 64V, 70V, 72V, 82V, 84V, 86V, 90V ....)
Tensiune functie TRIGGER 4-28V dc
Capacitate maxima sarcina releu : max 10A AC DC
Domeniul de reglare 0,1 sec 999 minute
Product manual:
Working voltage: DC5V-DC90V (wide voltage anti-connection protection)
Trigger signal source: high-level trigger DC 3.0V 28V signal ground and system ground to improve the system's anti-interference ability can also short-circuit the ground
Output capacity: controllable DC 90V 10A or AC 250V 10A equipment
Product size: 64mm*35mm*19.3mm
Mounting hole: diameter 3mm
Working temperature: -40 C 85 C
Operating mode:
P1 mode: After the signal is triggered, the relay turns on the OP time, then turns off; in the OP time, the following operation
P1.1: The signal is triggered again.
P1.2: Signal triggers re-timed again
P1.3: The signal triggers reset again, the relay is disconnected, and the timing is stopped.
P-2: Give the trigger signal, after the relay turns off the CL time, the relay turns on the OP time. After the timing is completed, the relay is turned off.
P3.1: Give the trigger signal, after the relay turns on the OP time, the relay turns off the CL time, then loops the above action, the signal is given again in the cycle, the relay is disconnected, the timing is stopped; the number of cycles (LOP) can be set
P3.2: No trigger signal is required after power-on, the relay turns on OP time, the relay turns off CL time, and the above actions are cycled; the number of cycles (LOP) can be set
P-4: Signal hold function If there is a trigger signal, the timing is cleared, the relay remains on; when the signal disappears, the relay is turned off after timing the OP;
Relay enable mode:
ON : The relay is allowed to conduct during the OP conduction time.
OFF : The relay is prohibited from being turned on and is always off.
Short press the STOP button on the main interface to switch between ON and OFF. The current state will flash, then return to the main interface. This function is the emergency stop function, one button to open and close the relay.
Sleep mode (long press the stop button to view the current mode):
C-P sleep mode: within five minutes, without any operation, the digital tube automatically turns off the display, the program runs normally. un1q al3x 5e73e 5tq
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Sursa step up DC 600W
Prezentare video ->
Specificatii:
- Modul sursa Step UP - 600W 15A
- Intrare: 10V-60V (inclusiv autoReglaj Tensiune iesire: 12V-80V
- Reglaj Curent iesire: 0.8-10A
- Curent maxim pe intrare 15A si curent pe iesire de max 10A
- Se poate folosi si ca POE
- Poate fi folosita la panori solare, ridicator tensiune
Description:
Input voltage : 10V -60V
Input Current: Maximum input current of 15A
Output voltage : 12V -80V continuously adjustable
Output current: maximum output current of 10A ( adjustable )
Output power: the effective power P = input voltage V * 10A
Conversion efficiency: up to 95% ( input voltage, current; output voltage and current impact of conversion efficiency )
Short circuit protection : Fuse
Weight :251g
Size: 73*51mm
Applications:
1, DIY a power supply, 12V can input and output can 12-50V adjustable.
2, the power supply for your electronic device, according to your system can set the output voltage value.
3, as the car power supply for your laptop, PDA or a variety of digital products supply.
4, DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.
5, solar panel regulator. 5y5sa y0p
6, to the battery, rechargeable lithium batteries.
7, driving high-power LED lights. al3x
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Modul 1 releu cu optocuplor si level Inverter
- Semnal TTL - Trigger LOW sau HIGH, selectabil - jumper
- Semnalul logic aplicat trebuie sa fie tip OPEN COLECTOR (fara pull up din microcontroler) altfel nu functioneaza mai ales cu nivele mici de semnal (datorita modului de constructie optocuplor de pe placa releelor)
- Izolare galvanica prin optocuplor
- Putere Maxima 2.5KW pentru (250AC - 10A)
Nota releul trebuie alimentat la tensiunea de lucru specificata 24V
Input Part:
VCC: Connect to power positive (according to the relay voltage range)
GND: Connect to power negative
IN: Relay module trigger pin (high Low level trigger) 5e73e al3x
Onboard 24V, 10A,250VAC
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Sursa Step Down Fast Charging USB 65W
Product characteristics
Input voltage: DC 8 32V
Output voltage: When connected to a power receiving device compatible with TYPE-C
Automatic adjustment between 3.3V and - 21V after standby (input power
The voltage should be higher than the output voltage. To trigger a 20V fast charge
Input voltage should be higher than 20V)
Output power: maximum 65W (5V3A.9V3A, 12V3A, 20V3.25A, etc.)
Conversion efficiency: 92% - 97%
Output voltage ripple:<200mV
No-load current:<3mA
Input overvoltage and undervoltage protection
Input overcurrent protection
Output overcurrent and short circuit protection
Overtemperature protection for harvester
Supported charging protocols
BC1.2, Apple Protocol
Qualcomm QC4.0, QC3.0 and QC2.0
Huawei Fast Charging Protocol FCP and SCP
Samsung Fast Charging Protocol AFC
MTK PE+1.1 and MTK PE+2.0
PD2.0/PD3.1 (PPS) output protocol
Alte observatii:
In primul rand tensiunea de iesire si curent sint controlate prin protocol QC3.0 de catre telefon (tableta etc) si trage atat curent la o anumita tensiune cat doreste dispozitivul nu cat poate maxim aceasta sursa.
Acest modul este o sursa step-down comandata de catre dispozitivul (telefon, tableta . . . ) pus pe USB cu protocol de comunicatie Fast Charging QC4.0, QC3.0, QC2.0 etc pentru incarcare rapida.
La iesire in functie de modul selectat fast charging poate ajunge la max 65W (20V cu 3.25A)
Tensiunea setata implicit (default) de iesire pe USB este de 5V si suporta la intrare o tensiune intre 5V-32V max, adica suporta si auto 12V, 24V
Fiind o sursa step-down, adica doar coboara tensiunea, functia de Fast Charging nu va functiona daca la intrare sa zicem intra 5V, nu poate da 9-12V-20V
De ex se introduce 9V, va functiona Fast Charging intre 5-9V out.
Pentru a asigura o putere maxima utilizata pentru functia fast charging, este necesar ca tensiune de intrare sa fie intre 12V si max 32V. al3x 5y5sa 2s0 d0w7
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
www.digitalelectron.wordpress.com/livrare
Modul 2 relee cu optocuplor
- Semnal TTL - Trigger LOW sau HIGH, selectabil - jumper
- Semnalul logic aplicat trebuie sa fie tip OPEN COLECTOR (fara pull up din microcontroler) altfel nu functioneaza mai ales cu nivele mici de semnal (datorita modului de constructie optocuplor de pe placa releelor)
- Izolare galvanica prin optocuplor
- Putere Maxima 2.5KW pentru (250AC - 10A)
Nota releul trebuie alimentat la tensiunea de lucru specificata 24V
This is a 24V, 2-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Micro-controller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
2-Channel Relay interface board, and each one needs 15-20mA Driver Current 5e73e al3x
Equipped with high-current relay, AC250V 10A ; DC30V 10A
Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
Indication LED s for Relay output status
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com

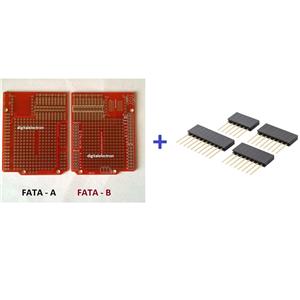

Kit conector tip stack pentru constructie shield DIY pentru Arduino UNO, Leonardo sau compatibile seria R3 + PCB prototip:
Acest kit stack contine:
- 1 x PCB Prototip UNO (R1/R2/R3)
- bareta (1 buc) 1x10
- bareta (2 buc) 1x8
- bareta (1 buc) 1x6
PCB-ul prototip este de inalta calitate, cablaj dublu placat cu treceri metalice si este Ideal constructie shield custom pentru Arduino UNO / MEGA / DUE (R1 / R2 / R3)
La cerere se poate oferi si kit pentru R2 la aceeasi bani
Separat se poate ahizitiona si bareta pentru ICSP de 2x3 pini la (1.99 Lei)
Nota:
In lista mea de componente am tot ce va trebuie sa va construiti un Arduino DIY, home made, microcontroler (Atmega 328), soclu DIP 28, cuart 16Mhz, condensatori ceramici 22pf, placa cablaj de test XUxz , pini simpli (mama sau tata) si/sau stack (cei lungi). a5du1 al3x p5bb r3d
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
www.digitalelectron.wordpress.com/livrare
Arduino Mega 2560 R3
Descriere: Arduino este o platforma open-source și un mediu de dezvoltare care implementează limbajul de procesare Wiring. Arduino pot fi folosite pentru a dezvolta obiecte interactive de sine stătătoare sau pot fi conectate la software-ul de pe computer (de exemplu Flash, Processing, MaxMSP). IDE-ul al3x open-source poate fi descărcat gratuit (în prezent pentru Mac OS X, Windows, și Linux).
Mega Arduino este o placa microcontroler bazat pe ATmega2560. Ea are 54 de pini digitale de intrare ieșire (din care 14 pot fi utilizate ca ieșiri PWM), 16 intrări analogice, 4 UART (porturi seriale hardware), un 16 MHz oscilator de cristal, o conexiune USB, un jack de alimentare, un antet ICSP, și un buton de resetare. Acesta conține tot ce este necesar pentru a sprijini microcontroler; pur și simplu îl conectați la un calculator printr-un cablu USB sau de alimentare cu un adaptor sau baterie AC-DC pentru a începe. Mega este compatibil cu cele mai multe scuturi concepute pentru Arduino Duemilanove sau Diecimila. (a5du1)
ATmega2560 microcontroller
Input voltage - 7-12V
54 Digital I O Pins (14 PWM outputs)
16 Analog Inputs
256k Flash Memory
16Mhz Clock Speed
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Driver Motor 30A, 1 x VNH2SP30
Caracteristicile Produsului
Motor driver: VNH2SP30
Canale : modul cu 1 canal
Tensiunea minima de alimentare: 5.5 V
Tensiunea maxima de alimentare: 16 V
Curent pe canal: 14 A
Curent maxim (peak) pe canal: 30 A
Curent prin ambele canale : 25 A
Senzor curent : 0.13 V/A
Frecventa maxima PWM: 20 kHz
Description:
This is essentially a ramped up version of our Ardumoto motor driver shield.
For this monster shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers.
We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors!
The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.
Note:
When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However,when using the board at currents up to 6A the chips will barely become noticeably warm. d51v al3x r3d
Features:
Power supply: Max 16V
Maximum current rating: 30 A
Practical Continuous Current: 14 A
Current sensing available to Arduino analog pin
MOSFET on-resistance: 19 m (per leg)
Maximum PWM frequency: 20 kHz
Thermal Shutdown
Under voltage and Overvoltage shutdown
- - - - - - - - - - - - - - - - - - - - - - - - -
ATENTIE !
Doar in cazul in care driverul este folosit pentru control motoare curentul maxim suportat este de cel putin 2 ori curentul nominal specificat pe motor.
Adica acest driver suporta motoare ce au curent nominal de max 15A !!! pentru ca trebuie luat in calcul si pornirea lui in sarcina maxima (au fost cazuri).
Daca nu se respecta acest lucru nu ofer garantie !!!
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
www.digitalelectron.wordpress.com/livrare
Senzor tip contact magnetic pentru fereastra, usa ... etc pentru sisteme alarma.
Material: ABS
Dimension: approx. 27 x 14 x 8(mm)
Switch pattern: N O normally open, alarm-on-broken
Voltage: 100V DC (5V, 9V, 12v, 18v, 24V, 30V, 32V, 35V, 48V, 60V, 72V, 80V, 90V, 92V ...)
Rated power: 10W
Actuation distance: 15-25mm
Wire lead: 24 Awg, about 350mm long
Mounting method: SMD (by screws or double-sided tapes)
Recommendations in application: wooden door, window
Features:
Easy installation Reliable performance
Good characteristic of abrasion-proof
Best Choice for you to protect family
There are two types of reed switches: "normally open" reed switches and "normally closed" reed switches. The metal reeds on a normally open switch stay open when there is no magnet near the switch. In the presence of a magnetic field, the contacts of a normally-open reed switch will close. A normally-closed reed switch is closed when it is not near a magnet; as a magnet is brought close to it, a normally-closed switch will open 5e73e al3x 5en50r b0t r3d
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Wireless Charger 30W
Suport incarcare wireless noua versiune mai mare de 30W cu cablu USB Tip-C inclus.
Testat si poate incarca si prin husa, distanta pana la tel poate fi de maxim 5mm, o husa are 1mm
Puterea maxima de 30W se atinge numai cu incarcatoare rapide cu functia de fast Charging
Extensive Compatibility: Support 30W 20W 15W 10W 7.5W Output,Our wireless chargers will compatible with All phones that support wireless charging. So if your phones support wireless charging,Just buy it!
Easy Wireless Charging and Case friendly: The fast wireless charger allows you to charge your device at a higher charging speed which up to 1.8X faster than standard wireless charger.Don't fumble with your phone case. Inductive charging directly through protective cases up to 6mm 0.23inch thick (not including cases with magnetic or metal attachments).
Slim and Cool Design: Lightweight,sleek,compact design with non-slip rubber. This wireless charging pad is just 6mm 0.23inch super slim and takes up very little space make it easier to put it in pockets, a high speed wireless power charging pad can be easily carried during travel or business,This charger feels solid and looks great no matter using it in the office or at home.
Smart indicator : When the power is on, the indicator light will be turn on green light for 20 seconds automatically turn off If the charging device is not detected in 20 seconds,In standby,When you put mobile phone or earbuds on to charging. The weak blue light flashes slowly until it is fully charged. The weak light will not affect your sleep.
Specifications:
Color: Black White Red Gold
Output : 5W 7.5W 10W 15W 20W 30W(30W Max will be charging faster than others)
Charge efficiency: >75%
Charging frequency: 110 - 205 KHz
Extensive Compatibility: Support 30W 20W 15W 10W 7.5W Output,Our wireless chargers will compatible with All phones that support wireless charging. So if your phones support wireless charging,Just buy it! al3x c0n 5y5sa 2s0
Package Included:
1*Fast Wireless Charger Pad
1*1m Type C USB Cable pd
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Arduino UNO R3 - CH340G
Cablu USB este inclus
Arduino UNO R3 - compatibil cu mufa Tip B - USB
Arduino UNO R3 (ultima versiune) este o platforma de procesare open-source, bazata pe software si hardware flexibil si simplu de folosit. Consta intr-o platforma de mici dimensiuni construita in jurul lui Atmega328 si este capabila de a prelua date din mediul inconjurator printr-o serie de senzori si de a efectua actiuni asupra mediului prin intermediul luminilor , motoarelor, servomotoare, si alte tipuri de dispozitive mecanice. Atmega328 este capabil sa ruleze cod scris intr-un limbaj de programare care este foarte similar cu limbajul C++. (a5du1 al3x)
Features:
ATmega328 microcontroller
Input voltage - 7-12V
14 Digital I O Pins (6 PWM outputs)
6 Analog Inputs
32k Flash Memory
16Mhz Clock Speed
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
WS2815 12V Led adresabil RGB Neopixel 5050
Video demo => https: youtu.be qMz9KEjTafc
OBS:
- Pret pentru 1 buc = 1 Lei (mai jos este explicat pretul redus)
- Ledurile au tensiune de lucru 5V !!
- Pretul este fractionat pe bucata led nu pe 1m!
Pret in functie nr de bucati (leduri):
- intre 1-10 buc = 10 lei buc
- intre 10-49 buc = 7 lei buc
- intre 50-99 buc = 4 lei buc
- intre 100-199 buc = 3 lei buc
- intre 200-299 buc = 2 lei buc
- peste 300 buc = 1 lei buc
Specificati:
Tip IC : WS2815
Culoare material plastic constructie: Led-alb si folie-neagra sau alba cu adeziv (ca in poza)
Voltaj lucru: DC 12V
Lungime unda culoare (nm): Rosu-650, Verde-520, Albastru-460
Consum maxim absolut pe 1m (60 leduri): 18W (1.5A la 12V)
Consum maxim absolut 1 buc led: 0.3W (0.025A la 12V)
Unghi iluminare: 120 grade
Dimensiune led: 5mm x 5mm
Durata viata: aprox 50 000 ore
Nu sint waterproof!
Nu suporta schimbarea polaritatii! Respectati indicatiile inscrise pe led (+) si (GND)
Description:
Excellent, high quality intelligent lighting! Based on high quality SMD5050 RGB LEDs embed(Built-in) integrated WS2815 control IC, each LED is independently addressable (60 individually addressable LEDs in 1 meter), opening up entirely new lighting possibilities. al3x l3d ws2812b
WS2815, 5050 SMD W IC Built in
One WS2815 IC control ONE LED Chip
60 RGB LEDs per meter
Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color
Non-waterproof,
Work Voltage: 12V
Width: 10mm
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Aceste peltiere sint RETESTATE deoarece majoritatea furnizorilor din china nu respecta specificatiile produselor, acestia marcheaza intentionat valoarea model mai mare (fake). Testarea s-a facut prin masurarea ESR si reconfirmarea secundara - verificare consum sursa laborator. In urma testarii a fost determinat ce model este conform datasheet.
Concluzie: Aceste peltiere testate nu inseamna ca sint defecte sint perfect functionale 100%
Specificatii comune:
DT max. = 68 C
P-N Junction 127 couples
Material Al2O3 (aluminum oxide)
Lungime fire 150mm
Dimensiune 40x40x3.8mm
Stoc - disponibil
- TEC1 - 12703 - 33W - 20 lei
- TEC1 - 12704 - 38W - 25 lei
- TEC1 - 12705 - 43W - 30 lei
- TEC1 - 12706 - 48W - 38 lei
- TEC1 - 12707 - 53W - 45 lei
- TEC1 - 12708 - 60W - 51 lei
- TEC1 - 12709 - 68W - 57 lei
- TEC1 - 12712 - 97W - 80 lei
- TEC1 - 12713 - 110W - 89 lei
- TEC1 - 12714 - 122W - 100 lei
Stoc - 0 buc
- TEC1 - 12710 - 76W
- TEC1 - 12711 - 86W
- - - - - - - - - - - - - - - - - - - - - - - - -
Real - disponibil
- TEC1 - 12715 - 138W - 140 lei
Se ofera gratuit 2 plicuri pasta termica, la fiecare peltier achizitionat.
Daca se doreste plicuri suplimentare costa 0.5 lei plic
- - - - - - - - - - - - - - - - - - - - - - - - -
Nota: Din cand in cand am si peltiere ce prezinta mici margini ciobite sparte dar care nu afecteaza functionarea corecta au pret redus cu cel putin -20% fata de pretul din lista de mai sus. (trebuie sa ma contactati pentru verificare stoc)
- - - - - - - - - - - - - - - - - - - - - - - - -
ATENTIE !
1) A nu se alimenta mai mult de 2 sec fara radiator (ambele parti+pasta termica) si fara controler => se va distruge se depaseste diferenta de temperatura ("Delta T" 68C) dintre rece si cald ce va duce la distrugerea fizica, in timp, a semiconductorilor de pe placile ceramice.
2) Cand se inlocuieste acest peltier verificati si controlerul sa functioneze corect, curatati vechea pasta si folositi pasta noua, daca nu si va merge incontinuu => se va distruge acest peltier. Controlerul poate fi electronic sau o siguranta termica calibrata la temperatura specifica aparatului (in genul aparatelor de cafea)
Nu ofer garantie daca nu se respecta cele de mai sus!
(t3rm1 in5ta al3x hotel, minibar)
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
Senzor distanta IR obstacole pentru robot, Arduino, modul, shield, IR
Item Description:
Parameter:
1. When the module detects an obstacle in front of the signal, the circuit board green indicator light levels while continuing output low signal OUT port, the module detects the distance 2 30cm, detection angle 35 , the distance can detect potential control to adjust, adjust potentiometer clockwise, the detection distance increases; counterclockwise adjustment potentiometer, detection distance decreases.
2, the sensor active infrared reflection detection, target reflectivity and shape of the detection distance of the key. The minimum detection distance which black and white max; small area of the object distance is small, a large area from the Grand.
3, the sensor module output port OUT can be directly connected with the microcontroller IO port can also be driven directly to a 5V relay; Connection: VCC-VCC; GND-GND; OUT-IO
4, the comparator using LM393, job stability;
5, can be 3-5V DC power supply for the module. When the power is turned on, the red power indicator light;
6, with 3mm screw holes for easy mounting, installation;
7, the circuit board size: 3.2CM * 1.4CM
8, each module in the delivery has threshold comparator voltage adjustable via potentiometer, special circumstances, please do not adjust the potentiometer.
Interface:
1. VCC external 3.3V-5V voltage (5v microcontroller and can be directly connected to 3.3v MCU);
2. GND an external GND;
3. OUT small board digital output interfaces (0 and 1); (5en50r r08o al3x r3d
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
www.digitalelectron.wordpress.com/livrare
Modul programabil digital - protectie 0-10A, 7-30V DC la supra curent / sarcina, motor, etc
Acest produs este un modul electronic de protectie pentru o sarcina alimentata de curent continuu cu setare digitala curent de monitorizare intre 0-10A (precizie 5-10mA) ce actioneaza un releu ce executa o anumita functie (programe mai jos).
Sarcina monitorizata poate fi un motor, un consumator, baterie ... etc, modulul suporta orice tensiune de DC intre 7 si max 30V
(poate fi: 9V, 12V, 14V, 14.4V, 15V, 16V, 18V, 19V, 19.5V, 20V, 22V, 24V, 25V, 25.4V, 27V, 28V, 29V, 30V)
Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Detect that the current is too large or too small, control the relay switch to control the circuit on and off, or give a signal
3. Exquisite appearance
4. Good performance and long service life
5. Simple operation and wide application range
Parameter:
Detection range: DC current between 0 - 10A
Detection accuracy: 0.01A (10ma)
With error calibration function, the display can be turned off for a long time, reducing power consumption
Standby current: about 20ma
Relay output: can control the on-off of the DC line within 10A - (5A for long life)
Function Description:
P-11: When the measured current is greater than I1, the relay pulls in; when the measured current is less than I1 again, the relay is disconnected
P-12: When the measured current is greater than I1, the relay pulls in; it always keeps pulling in until the power supply of the circuit board is cut off
P-21: When the measured current is greater than I2, the relay pulls in; when the measured current is less than I1, the relay is disconnected
P-22: When the measured current is greater than I2, the relay pulls in; it always keeps pulling in until the power supply of the circuit board is cut off
P-31: When the measured current is less than I1, the relay is closed; when the current is greater than I2, the relay is disconnected
P-32: When the measured current is less than I1, the relay pulls in; it always keeps pulling in until the power supply of the circuit board is cut off
P-41: When the measured current is between I1 and I2, the relay is pulled in, and the relay is disconnected in other cases;
P-42: When the measured current is between I1 and I2, the relay pulls in; it always keeps pulling in until the power supply of the circuit board is cut off
P-51: When the measured current is less than I1 or greater than I2, the relay is pulled in, and the relay is disconnected in other cases;
P-52: When the measured current is less than I1 or greater than I2, the relay pulls in; it always remains closed until the power supply of the circuit board is cut off
Setup Instructions:
Power on to display the measured current; (if the measured current terminal is floating, the digital display is a normal phenomenon)
It takes more than 1 second to press K1 for the first time to prevent false triggering. The screen displays: P 11: K2 adjustment mode, K3 adjustment function
Press K1 for the second time, the screen flashes and displays: 0.05 means the value of the threshold I1 is 0.05A; K2 sets I1 plus, K3 sets I1 minus
Press K1 for the third time, the screen flashes: 0.10 means the value of the threshold I2 is 0.1A; K2 sets I2 plus, K3 sets I2 minus
Press K1 for the fourth time, the screen displays the measured current ; it means entering the standby state;
Long press K2 or K3 in standby state to fine-tune the measured current error (5en50r, l1th1 v0l7 5e73e al3x)
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
www.digitalelectron.wordpress.com/livrare
Senzor HR202L umiditate aer
Specifications:
HR202 humidity resistance is the use of organic polymer materials of a new humidity sensor,
humidity sensing range, stable performance, long-term use, can be applied
to warehousing, cars,indoor air quality control,
building automation, medical, industrial control systems and wide range of
applications such as scientific research.
Parameters: (at 1kHz) Unit: OhmOperating range: 20 ... 95% RH 0 ... 60
Supply voltage: 1.5V AC (Max sine wave)
Operating frequency: 500Hz ... 2kHz
Rated Power 0.2mW: (Max sine wave)
value: (at25 1kHz 1V AC 60% RH sine wave) 31.0k
Impedance range: (at25 1kHz 1V AC 60% RH sine wave) 19.8 ... 50.2k
Humidity measuring accuracy: 5% RH (5en50r t3rm1 al3x in5ta r3d)
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
digitalelectron.wordpress.com
convertor CH340G usb to ttl uart
- Win 7, 10 instaleaza automat driverul, sau se gaseste pe google
Description
1 Support WINDOWS 98 / ME / 2000 / XP / Server 2003 / VISTA /. Server 2008 / Win7 / Win8 32 Bit / 64.
2. Supports IRDA SIR infrared communication.
3. Support USB1.1 or USB2.0/USB3.0 for communication. ( ch 340g 340 )
4. Simulation interface, you can upgrade serial peripherals.
5. Supports common MODE contact signal.
6.information download here.
7. Provide RS232. RS485. RS422 interface.
8. Programming does not affect the target board program runs p5o5 e1t35 al3x 0uc0 r3d
- - - - - - - - - - - - - - - - - - - - - - - - -
Livrare in Bucuresti si in tara:
www.digitalelectron.wordpress.com/livrare
